Remote Reader for Water Meters

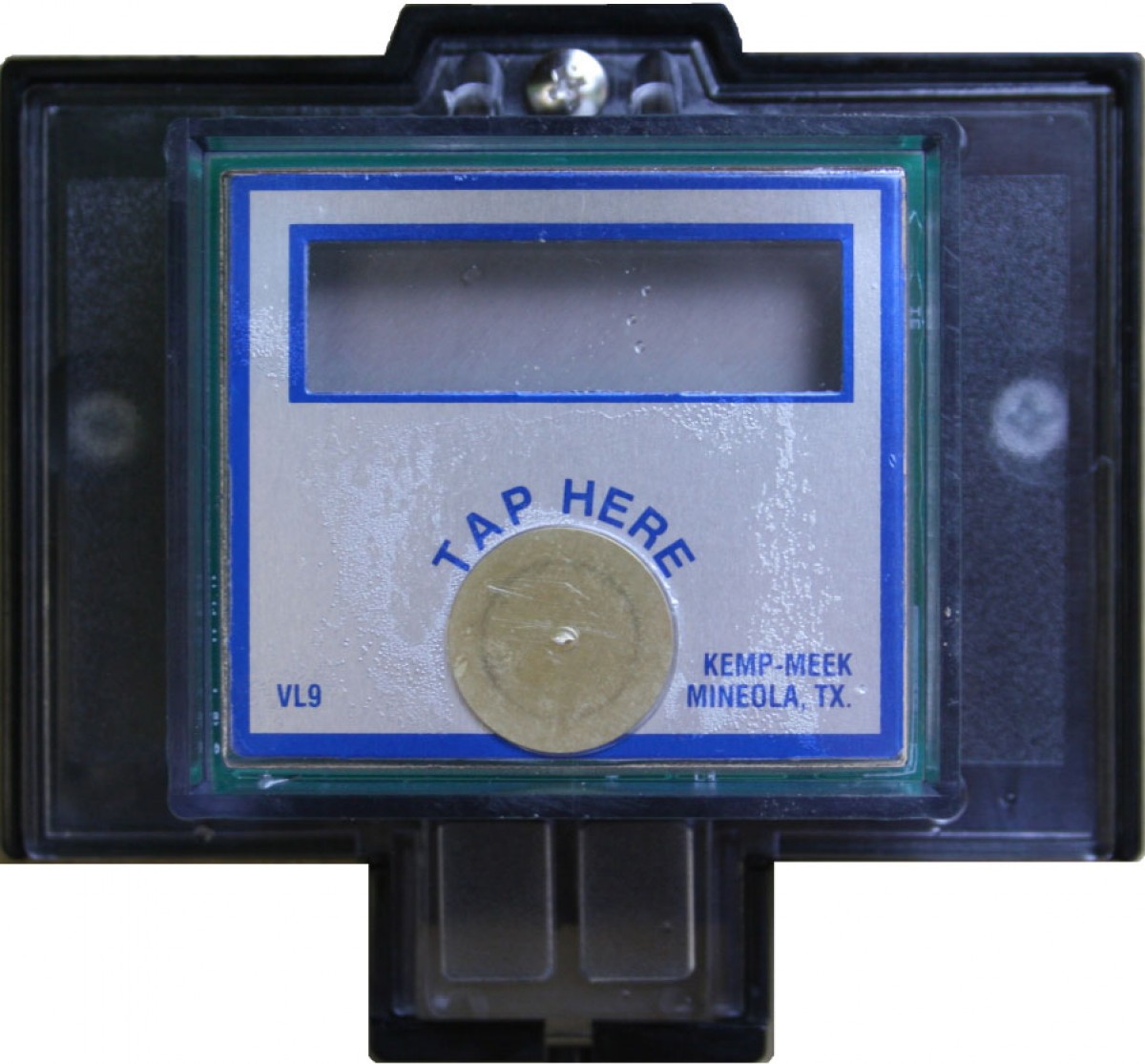

Visu-Link VL9-M

with Absolute Encoder Registers

Slash operational costs and improve worker safety with our Visu-Link VL9-M remote water meter that lets you conveniently read your water meters from up to 2000 feet away; with a quick installation, you will be on your way to new meter reading opportunities.

Features:

• IP67 Certified
• Connects to the three MIU/ encoder terminals on the water meter register
• Large easy to read display
• “TAP” switch to get current meter reading.
• Up to 14 digit meter readings
• Up to 14 digit alpha-numeric meter ID
• 5 year limited warranty
• Solution for meters that are installed in confined spaces.
• Allows a meter to be read remotely from a convenient location.
• Distances up to 2000 ft. from meter
• CE Certified

Physicals:

• 4.6" X 4.3" X 2" thick (11.7cm X 10.9cm X 5.1cm thick)
• Operating Temperature: -30°C to 80°C (-22°F to 176°F)
• Weight: 9oz (254g)

Meter Connectivity:

• Sensus
• Invensys
• Neptune
• Schlumberger
• Badger ADE
• Elster
• Badger HR-E
• Hersey / Mueller
• Any absolute encoder water meter register using Sensus direct connection 3-wire protocol

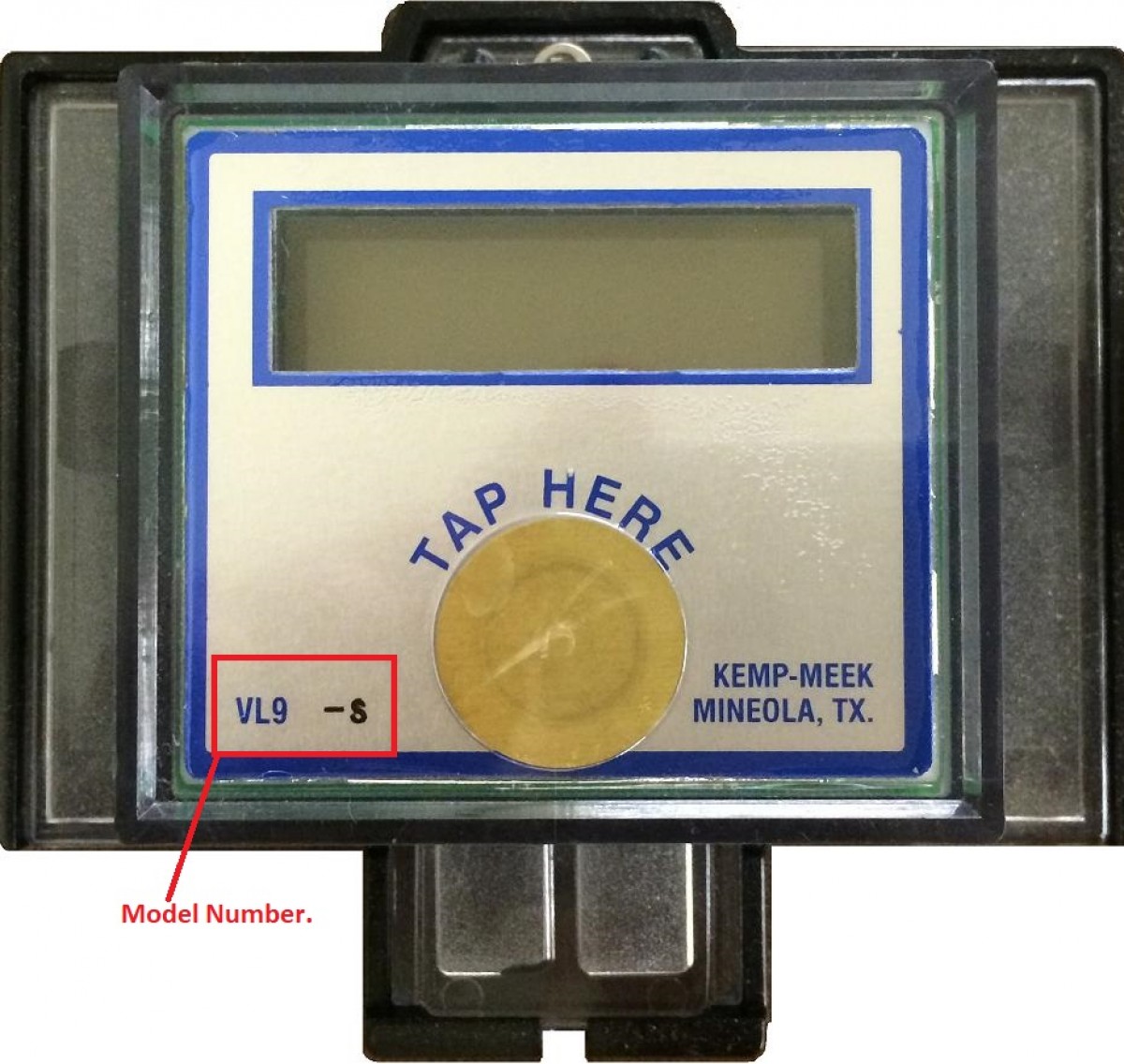

Features:

• Allows a meter to be read remotely from a convenient location
• Connects to switch or electronic pulse outputs on meter register
• Environmentally sealed
• Large easy-to-read display
• “TAP” to get current meter reading
• Up to 14 digits with optional decimal point
• 5 year limited warranty
• Distances to 2000 feet or more
• May be used in default mode of 6-digit reading starting at 000000 without programming
• May be reset to a reading of 000000 without going through full programming
• May be programmed to match number of digits and current reading on meter
• Accepts 1, 2, or 10 pulses per reading count increment.

Physicals:

• 4.6" x 4.3" x 2" thick (11.7cm x 10.9cm x 5.1cm thick)
• Operating Temperature: -30°C to 80°C (-22°F to 176°F)
• Weight: 9oz (254g)

Meter Connectivity:

Most meters having a mechanical switch closure or open-drain / open collector low-pulsing output, one switch closure or low pulse per increment of the meter reading.
